- Size: 4-7
- Place of Origin: Yantai City, Shandong Province, China
- Brand Name: KUNLUN MACHINERY
- Model Number: 1#
- Weight: 1100.000 kg

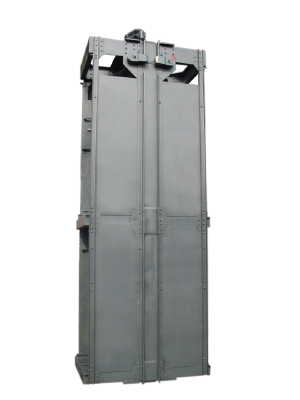

Cage is one of the most important equipment used for mine hoisting personnel, ore, equipment, materials, etc.
It is similar to elevator.When the cage at the bottom of the well, you can put some ores or equipments in the cage, and then lift the cage to the wellhead with wire ropes.
The cage can be made into one, two, three or more layers.
The size of the cage can be designed according to the user requirements of the mine.
- Size: 4-7
- Place of Origin: Yantai City, Shandong Province, China
- Brand Name: KUNLUN MACHINERY
- Model Number: 1#
- Weight: 1100.000 kg
NO. | chassis size（mm） | Layer | Tank(mm) | Usable tramcar | Maximum load | Weight | End load | Bearing the number | Cage guide space | Cage guide timber section |
1# | 1300×980 | Singel cage | 1300 | YGC0.5/6 | 1.4 | 1.10 | 3.0 | 6 | 1020 | 150×140 |
Doubie cage | 1300 | 2.8 | 1.60 | 4.4 | 12 |
